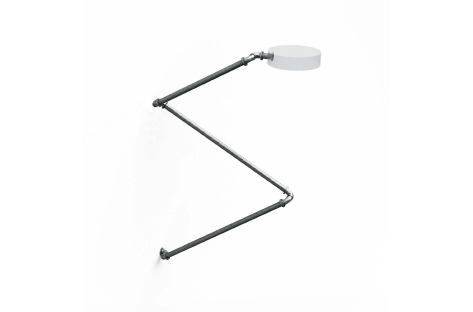

Swivel Joint Type
The roof drain system is designed to remove accumulated rainwater from the topside of external floating roof tanks. The articulated rigid pipe-type system is composed of swivel joints and rigid steel pipes. Its high-quality swivel joints ensure long service life, and the system offers 100% aromatic resistance.
Parts & Material
Part No
Description
Material
1
Swivel Joint
Carbon steel or Stainless steel body
2
Drain Pipe
Heavy duty type Carbon steel or Stainless steel
3
Stop Chain
Galvanized or Stainless steel
4
Pipe Support
Carbon steel
5
Check Valve
Carbon steel
Specifications
Model Name
TTS-RD1 Roof Drain System
Type
Swivel Joint & Articulated Rigid Pipe Type (*Swing joint is available)
Installed on
External Floating Roof Tanks
Available Size
3” to 8”
Features
• 100% aromatic resistance
• High efficiency for corrosion
• No worries of connection with roof legs
• Complies with API 650 Appendix C
• Heavy-duty load bearing capacity ball-bearing raceway for swivel joint
• Less maintenance & long service life
• Easy to install
• High efficiency for corrosion
• No worries of connection with roof legs
• Complies with API 650 Appendix C
• Heavy-duty load bearing capacity ball-bearing raceway for swivel joint
• Less maintenance & long service life
• Easy to install
