Floating Suction Unit

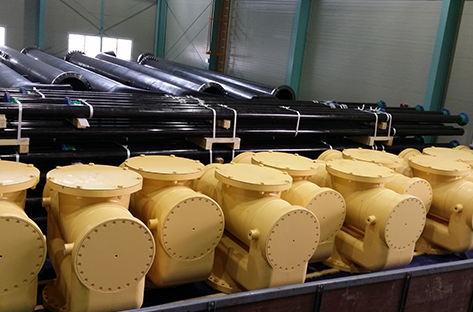

Aviation fuel, heating oils, petrochemicals, and water must be delivered without impurities. The TTS Floating Suction System is designed to extract clean product from a defined depth below the liquid surface. Its high-quality swivel joints ensure durable performance and long service life, while all float tubes are pressure tested. An anti-vortex inlet minimizes vortex formation.
Parts & Material
Part No
Description
Material
1

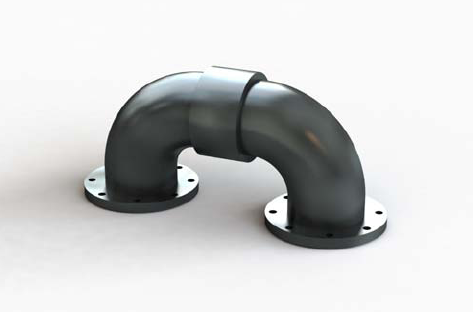

Swivel Joint
Carbon steel or Stainless steel body(*Swing joint type is available)
2
SuctionPipe
Heavy duty type Aluminum, Carbon steel or Stainless steel
3

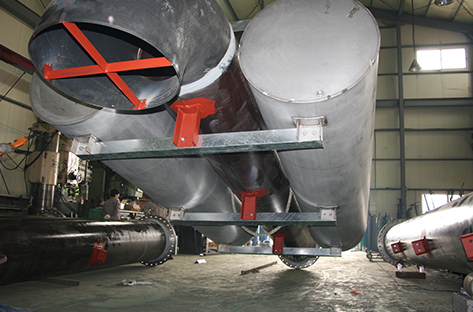

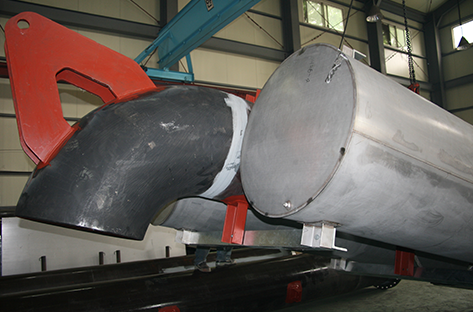

Float Tube
Aluminum or Stainless steel
4
Stop Chain
Galvanized Steel or Stainless Steel
5
Pipe Support
Carbon steel or Stainless steel
Specifications
Model Name
TTS-FS1 Floating Suction System
Type
Swivel Joint & Rigid Pipe Type
Installed on
Fixed & External Floating Roof Tanks
Available Size
2” to 36”
Features
• 100% aromatic resistance
• High performance swivel joint for extremely long life
• No worries of connection with roof legs
• Configuration in single, double and triple arms is available
• Designed for horizontal and vertical tanks
• Heavy-duty load bearing capacity ball-bearing raceway for swivel joint
• Easy to install
